Pre-filtration and Filtration of Drinking and Industrial Water

Automatic Electric Self-Cleaning Screen Filters





SERIES AF-200E





Standard Features:

• Minimum operating pressure: 1 bar
• Maximum operating pressure: 10 bar
• Clean filter pressure loss: 0.1 bar
• Maximum water temperature: 65°C
• Filtration range: 10 - 3000 micron
• Electric motor: 400V/50Hz~60Hz, 0.2kW
• Flush water consumption [at minimum working pressure]: 7 liter
• Filter housing materials: carbon steel coated with baked on epoxy





Model	Conn. Size ØD [inch]	Screen Area [cm²]	* Maximum Flow Rate  [m³/h]	** Flushing Flow Rate [m³/h]	ØD1   [inch]	X   [mm]	Y   [mm]	H   [mm]	Weight   [kg]
AF-202EF	2	1100	30	6	10	220	197	754	57
AF-202EFS	2	1630	30	6	10	220	197	860	68
AF-203EF	3	1100	40	6	10	220	197	754	65
AF-203EFS	3	1630	50	6	10	220	210	855	70
AF-204EF	4	1630	80	6	10	220	210	855	73
AF-204EFS	4	2770	90	20	10	220	315	1167	90
AF-206EF	6	4120	130	20	10	220	400	1397	140
AF-208EF	8	5240	200	20	16	305	450	1480	190
S	Filter with large filtration area
*	Flow rate data is for high quality water at filtration grade of 120 micron
**	Flushing flow rate data is for minimum operational pressure [1 bar]



Pressure Loss at 120 Micron



Operation Information for AF-200E Series Electric Self-Cleaning Filter



Filtration

Water enters the filter through the “Inlet” [7]. The water then reaches the fine screen [6], which purifies the flow by separating smaller particles from the water. As more water flows through, impurities build up on the fine screen.

As impurities on the screen accumulate, a pressure imbalance is built up between the internal section of the fine screen [6] and its external section.



Cleaning Process

When the difference in pressure [ΔP] reaches the preset value on the differential pressure indicator [11], a series of events is triggered while water continues to flow to the system units. The controller transmits a signal for a 15 second flushing cycle. The flushing valve [3] opens, pressure is released from the hydraulic piston [1] and water flows outside. Pressure in the hydraulic chamber [4] and the dirt collector [2] is significantly lowered resulting in a suction process via the suction nozzles [8] to the dirt collector [2] and from there to the hydraulic chamber [4] through the flushing valve [3] outside. The electric motor [12] simultaneously rotates the dirt collector [2] around its axis. The pressure is released from the piston [1] and the high pressure inside the filter causes vertical movement of the dirt collector. The combination of the vertical movement and rotation efficiently cleans the entire internal screen [6] surface.



At the end of the 15 second cycle the flushing valve [3] closes and the operation of the electric motor [12] is stopped. The increased water pressure returns the hydraulic piston [1] to its initial position. The filter is now ready for the next cycle, with clean and filtered water flowing through the “Outlet” [5].



The 15 second flushing cycle resumes operation whenever the difference in pressure reaches the preset pressure value set on the differential pressure indicator. If the pressure difference remains unchanged after one cycle, another cycle will start after a delay of 15 seconds.





Legend: Hydraulic Piston Dirt Collector Hydraulic Flushing Valve Flushing Chamber Outlet Fine Screen Inlet Suction Nozzle Solenoid Valve Electric Connection Box Differential Pressure Indicator Electric Motor





Installation possibilities
Filter installation on a pipe		Installation of more filters on a parallel pipeline
Filter Contaminated water inflow Filtered water outflow Shut-off flap valve for by-pass Shut-off flap valve on the inflow Shut-off flap valve on the outflow Space for disassembly		Filter Contaminated water inflow Filtered water outflow Waste Shut-off flap valve on the inflow Shut-off flap valve on the outflow Space for disassembly









SERIES AF-900





Standard Features:

• Minimum operating pressure: 1 bar
• Maximum operating pressure: 10 bar
• Clean filter pressure loss: 0.1 bar
• Maximum water temperature: 65°C
• Filtration range: 10 - 3000 micron
• Electric motor: 400V/50Hz~60Hz, 0.4kW
• Flush water consumption [at minimum working pressure]: 45 liter
• Filter housing materials: carbon steel coated with baked on epoxy





Model	Conn.Size ØD [inch]	Screen Area [cm²]	*Maximum Flow Rate  [m³/h]	**Flushing Flow Rate [m³/h]	ØD1   [inch]	ØD2   [inch]	L   [mm]	L1   [mm]	L2   [mm]	L3   [mm]	H   [mm]	Weight   [kg]
AF-903PR	3	3220	50	10	10	4	450	1110	1845	2315	630	187
AF-904PR	4	4500	80	10	10	4	600	1305	2040	2670	630	203
AF-906PR	6	6330	180	10	16	4	750	1410	2145	3100	761	330
AF-908PR	8	7030	350	10	18	4	750	1410	2145	3100	813	378
AF-910PR	10	8970	450	10	18	4	900	1934	2669	4245	813	435
AF-912PR	12	10920	600	10	18	4	1100	2182	2917	4750	813	530
AF-914PR	14	11760	850	10	24	4	900	1945	2680	4165	601	700
AF-916PR	16	14310	1100	10	24	4	1100	2170	2620	4680	960	820
PR	Parallel connection standard
*	Flow rate data is for high quality water at filtration grade of 120 micron
**	Flushing flow rate data is for minimum operational pressure [1 bar]



Pressure Loss at 120 Micron



Operation Information for AF-900 Series Electric Self-Cleaning Filter



Filtration

Water enters the filter through an “Inlet” [6] and passes through the coarse screen [7] that functions as a “first stop” for rough particles.  Water then reaches the fine screen [8], which further purifies the flow by separating smaller particles from the water. As more water flows through, impurities build up on the fine screen. As impurities on the screen accumulate, a pressure imbalance is built up between the internal section of the fine screen [8] and its external section.



Cleaning Process

When the difference in pressure [DP] reaches the preset value on the differential pressure indicator, a series of events is triggered while water continues to flow to the system units. The flushing valve [3] opens, and water flows outside.  Pressure in the hydraulic flushing chamber and the dirt collector [5] is significantly lowered resulting in a suction process via the suction nozzles [4] to the dirt collector [5] and from there through the flushing valve [3] outside. The electric motor [1] simultaneously rotates the dirt collector [5] and moves it along its axis. The combination of the linear movement and rotation efficiently cleans the entire internal screen [8] surface.



The flushing cycle continues as long as the pressure difference between the inlet and outlet remains the same and according to signals from the controller. If the pressure difference remains unchanged for a fixed preset time, the emergency flushing valve [2] opens along with the normal flushing valve [3].



The flushing cycle continues for the time that was preset on the controller. The flushing valves [2] & (3) close when the pressure difference on the pressostat drops. The operation of the electric motor is stopped after the collector axis reaches the internal or external limit switches. The filter is now ready for the next cycle, with clean and filtered water flowing through the “Outlet” [9].







Legend: Electric Motor Emergency Flushing Valve Hydraulic Flushing Valve Suction Nozzle Dirt Collector Inlet Coarse Screen Fine Screen Outlet





Installation possibilities
Filter installation on a pipe		Installation of more filters on a parallel pipeline
Filter Contaminated water inflow Filtered water outflow Shut-off flap valve for by-pass Shut-off flap valve on the inflow Shut-off flap valve on the outflow Space for disassembly		Filter Contaminated water inflow Filtered water outflow Waste Shut-off flap valve on the inflow Shut-off flap valve on the outflow Space for disassembly









SERIES AF-9800





Standard Features:

• Minimum operating pressure: 1 bar
• Maximum operating pressure: 10 bar
• Clean filter pressure loss: 0.1 bar
• Maximum water temperature: 65°C
• Filtration range: 10 - 3000 micron
• Electric motor: 400V/50Hz~60Hz, 0.2kW
• Flush water consumption [at minimum working pressure]: 70 liter
• Filter housing materials: carbon steel coated with baked on epoxy





Model	Conn.Size ØD [inch]	Screen Area [cm²]	*Maximum Flow Rate  [m³/h]	**Flushing Flow Rate [m³/h]	ØD1   [inch]	ØD1   [inch]	L   [mm]	L1   [mm]	L2   [mm]	L3   [mm]	H   [mm]	Weight   [kg]
AF-9803LOPR	3	3220	50	25	10	4	450	1215	1476	2015	544	160
AF-9804LOPR	4	5780	100	25	10	4	900	1610	1873	2800	544	190
AF-9806LOPR	6	5780	150	25	12	4	900	1680	1941	2900	580	210
AF-9806XLP	6	8410	160	25	10	4	900	2070	2339	3700	554	215
AF-9808PR	8	5780	160	25	12	4	900	1870	2132	3070	579	210
AF-9808LOPR	8	8410	300	25	12	4	900	2270	2528	3865	579	250
AF-9810LOPR	10	8100	400	25	14	4	900	2270	2462	3860	595	290
AF-9810XLP	10	11710	450	25	16	4	1100	2800	3300	5430	720	435
AF-9812PR	12	11710	600	25	16	4	1100	2800	3300	5430	720	440
AF-9814PR	14	12990	900	25	18	4	1270	2800	3300	5430	770	450
AF-9816PR	16	12990	1100	25	18	4	1270	2280	3300	5430	770	510
AF-9816XLP	16	17020	1500	25	24	4	1270	2280	3300	5430	920	700
AF-9810PR-C	10	5430	450	25	24	4	540	1430	1930	2420	920	270
AF-9812PR-C	12	5430	600	25	24	4	540	1430	1930	2420	920	410
AF-9814PR-C	14	7990	900	25	24	4	700	1640	2140	3110	920	420
AF-9816PR-C	16	11760	1100	25	24	4	700	1860	3540	3540	920	580
XLP	Extra long filter with extra large filtration area
LO	Long filter with large filtration area
PR	Parallel connection standard
C	Coarse filtration only
*	Flow rate data is for high quality water at filtration grade of 120 micron
**	Flushing flow rate data is for minimum operational pressure [1 bar]



Pressure Loss at 120 Micron



Operation Information for AF-9800 Series Electric Self-Cleaning Filter[ wmv 2.2 MB ]



Filtration

Water enters the filter through the “Inlet” [10] and passes through the coarse screen [2] that functions as a “first stop” for rough particles.  Water then reaches the fine screen [9], which further purifies the flow by separating smaller particles from the water.  As more water flows through, impurities build up on the fine screen. As impurities on the screen accumulate, a pressure imbalance is built up between the internal section of the fine screen [9] and its external section.



Operation information for model AF-9800-C

The process is the same as the above however there is no pre-filtration with a coarse screen [2] as the filtration grade is 400 - 3000 micron.



Cleaning Process

When the difference in pressure [ΔP] reaches the preset value on the differential pressure indicator, Or when the preset time in the controller arrives, a series of events is triggered while water continues to flow to the system units.  The controller transmits a signal for a 15 second flushing cycle. The solenoid opens the flushing valve [5] and release the pressure from the hydraulic piston [7].  Water flows outside from the flushing valve [5].  Pressure in the hydraulic chamber [6] and the dirt collector [3] is significantly lowered resulting in a suction process via the suction nozzles [4] to the dirt collector [3] and from there to the hydraulic chamber [6] through the flushing valve [5] outside. The electric motor [1] simultaneously rotates the dirt collector [3] around its axis. The pressure is released from the piston [7] and the high pressure inside the filter causes linear movement of the dirt collector. The combination of the linear movement and rotation efficiently cleans the entire internal screen [9] surface.



At the end of the 15 second cycle the flushing valve [5] closes and the operation of the electric motor [1] is stopped. The increased water pressure returns the hydraulic piston [7] to its initial position. The filter is now ready for the next cycle, with clean and filtered water flowing through the “Outlet” [8].



The 15 second flushing cycle resumes operation whenever the difference in pressure reaches the preset pressure value set on the differential pressure indicator. If the pressure difference remains unchanged after one cycle, another cycle will start after a delay of 10 seconds.







Legend: Electric Motor Coarse Screen Dirt Collector Suction Nozzle Hydraulic Flushing Valve Flushing Chamber Hydraulic Piston Outlet Fine Screen Inlet





Installation possibilities
Filter installation on a pipe		Installation of more filters on a parallel pipeline
Filter Contaminated water inflow Filtered water outflow Shut-off flap valve for by-pass Shut-off flap valve on the inflow Shut-off flap valve on the outflow Space for disassembly		Filter Contaminated water inflow Filtered water outflow Waste Shut-off flap valve on the inflow Shut-off flap valve on the outflow Space for disassembly









SERIES AF-7500/700





Standard Features:

• Minimum operating pressure: 1 bar
• Maximum operating pressure: 10 bar
• Clean filter pressure loss: 0.1 bar
• Maximum water temperature: 65°C
• Filtration range: 120 - 3000 micron
• Electric motor: 400V/50Hz~60Hz, 0.4kW
• Flush water consumption [at minimum working pressure]: 45 liter
• Filter housing materials: carbon steel coated with baked on epoxy
• Available connections: 90° or 180°





Model	Conn.Size ØD [inch]	Screen Area [cm²]	*Maximum Flow Rate  [m³/h]	**Flushing Flow Rate [m³/h]	ØD   [inch]	X   [mm]	Y   [mm]	H   [mm]	H1   [mm]	L   [mm]	L1   [mm]	Weight   [kg]
AF-7504BL	4	2910	80	25	10	350	240	400	-	800	1100	72
AF-7506BL	6	4190	160	25	10	450	240	400	-	1000	1500	88
AF-7508BL	8	5470	300	25	10	550	240	400	-	1200	1900	106
AF-7504BIL	4	2910	80	25	10	550	-	900	870	740	850	72
AF-7506BIL	6	4190	160	25	10	650	-	1100	1220	930	1200	88
AF-7508BIL	8	5470	300	25	10	750	-	1280	1550	1130	1500	106
AF-708BL	8	4170	350	25	16	325	350	910	1200	530	-	180
AF-710BL	10	5880	450	25	16	325	450	1120	1650	530	-	196
AF-712BL	12	7630	650	25	16	325	550	1340	2100	530	-	212
AF-714BL	14	7630	900	25	16	325	550	1340	2100	530	-	240
AF-716BL	16	11145	1100	25	24	425	600	1340	2100	730	-	410
BL	90°
BIL	180°
*	Flow rate data is for high quality water at filtration grade of 120 micron
**	Flushing flow rate data is for minimum operational pressure [1 bar]



Pressure Loss at 120 Micron



Operation Information for AF-7500/700 Series Electric Self-Cleaning Filter



Filtration

Water enters the filter through the “Inlet” [4] and passes through the fine screen [3], which purifies the flow by separating smaller particles from the water.  As more water flows through, impurities build up on the fine screen. As impurities on the screen accumulate, a pressure imbalance is built up between the internal section of the fine screen [3] and its external section.



Cleaning Process

When the difference in pressure [ΔP] reaches the preset value on the differential pressure indicator, or the duel time between flushing passed, series of events is triggered while water continues to flow to the system units.  The controller transmits a signal for a 10 second flushing cycle. The flushing valve [5] opens, pressure is released from the inner side of the fine screen [3] the electric motor [1] simultaneously rotates the brushes [2] around its axis. The brushes wipe all the dirt and efficiently clean the entire internal screen [3] surface.



At the end of the 10 second cycle the flushing valve [5] closes and the operation of the electric motor [1] is stopped. The filter is now ready for the next cycle, with clean and filtered water flowing through the “Outlet” [6].



The 10 second flushing cycle resumes operation whenever the difference in pressure reaches the preset pressure value set on the differential pressure indicator. If the pressure difference remains unchanged after one cycle, another cycle will start after a delay of 10 seconds.





Legend: Electric Motor Brush Fine Screen Inlet Flushing Valve Outlet

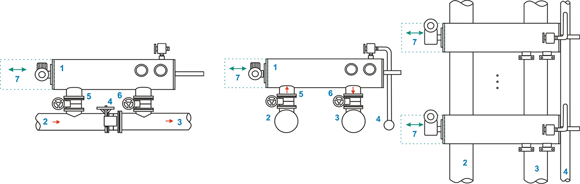

Installation possibilities
Filter installation on a pipe [7500BL]	Filter installation on a pipe [7500BIL]	Filter installation on a pipe [700BL]
1. Filter 2. Contaminated water inflow 3. Filtered water outflow 4. Shut-off flap valve for by-pass 5. Shut-off flap valve on the inflow 6. Shut-off flap valve on the outflow 7. Space for disassembly	1. Filter 2. Contaminated water inflow 3. Filtered water outflow 4. Shut-off flap valve on the inflow 5. Shut-off flap valve on the outflow 6. Space for disassembly	1. Filter 2. Contaminated water inflow 3. Filtered water outflow 4. Shut-off flap valve for by-pass 5. Shut-off flap valve on the inflow 6. Shut-off flap valve on the outflow 7. Space for disassembly







Special Options and Features:

• High pressure range: 16, 25, 40[bar]
• High temperature range: withstands temperature up to 95°C
• Anti frost: special control system for cold climate conditions
• Electric current: 110V AC, 230V AC, single phase, 24V DC and solar energy
• Construction materials: stainless steel 304L or 316L, and titanium
• Available controllers: electronic, timer, air-actuated, computerized and custom designed





Although the filters are manufactured in a top technical and technological quality, their installation, operation and maintenance are very easy. They are intended for a continuous operation and are non-demanding in terms of both rinsing water consumption and consumption of energy.





If you require removal of any mechanical impurities from water, please contact us and we will draw up, free of charge, a proposal for the most suitable solution for you, on the basis of a raw water analysis, required filtration capacity [m³/hr] and required quality of output water.
